GOKU H743 Pro 32bit 55A Stack is Flywoo’s flagship flight controller and ESC combo.
It features an STM32H743VIH6 chip (480MHz Cortex-M7 core) and dual ICM42688P gyros.
It offers 512MB blackbox , 10V3A/5V3A dual BECs, and 8 motor outputs for X8 multi-rotor.
It works with Betaflight, INAV, and Ardupilot, and includes a buzzer, dual-camera control, analog/DJI VTX, GPS, RX ports, and dual ESC connectors.

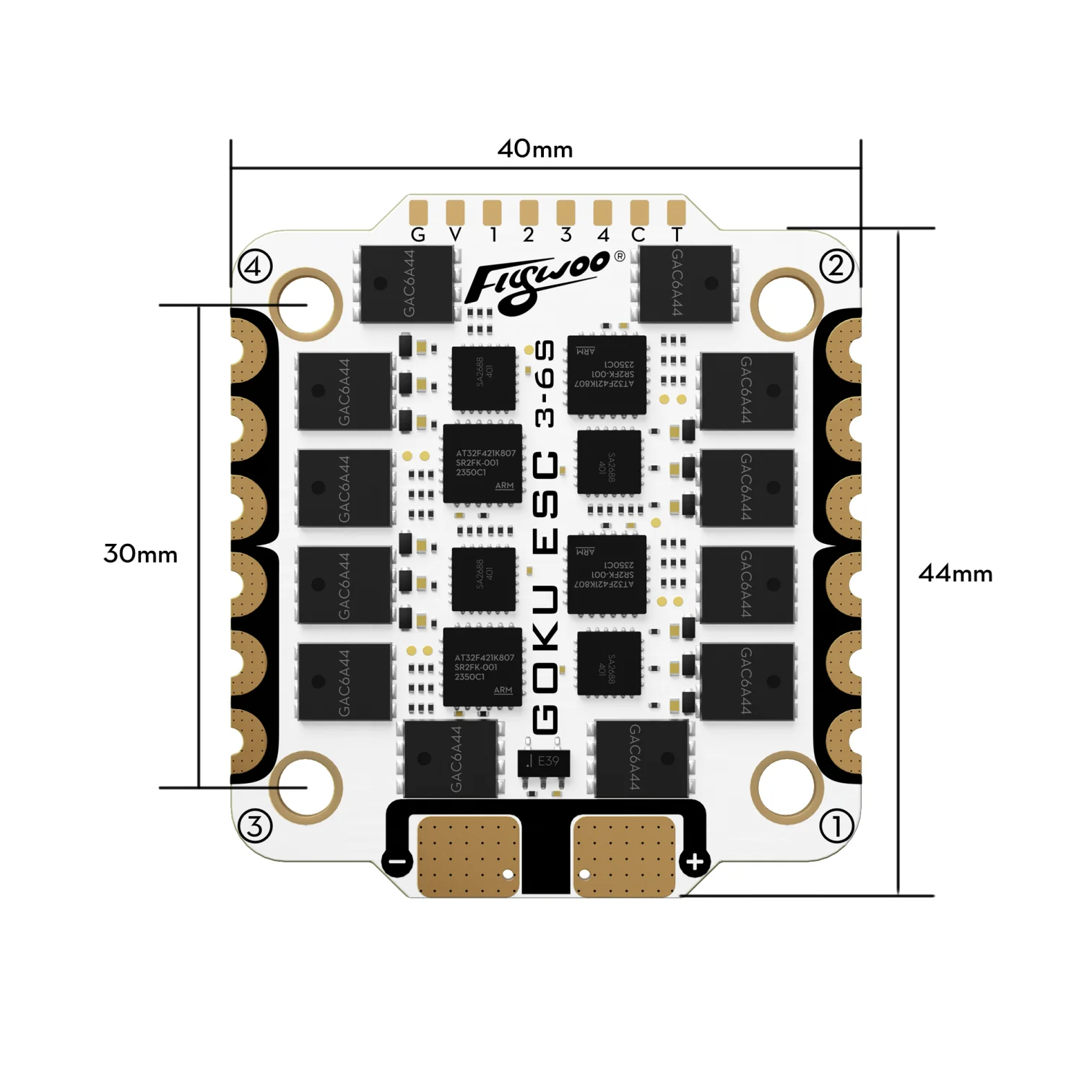

Paired with the GOKU G55M 55A ESC, it delivers fast, precise handling for racing and freestyle.
Highlights：
1. Powerful Computing: 480MHz STM32H743 chip enables future complex feature expansion.
2. Dual Gyro Stability: ICM42688P dual gyroscopes reduce noise/latency for smoother flight.
3. Efficient Power: Dual 10V/5V 3A BEC provides stable power for peripherals.
4. Versatile I/O: 7 UART ports 8 motor outputs (X8 multi-rotor support) with integrated dual-camera switching, VTX, GPS, receiver, and dual ESC interfaces.
5. Multi-Firmware Compatibility: Works with Betaflight, INAV, and Ardupilot.
6. Massive Storage: 512MB blackbox logs full flight data for analysis.
Specifications：

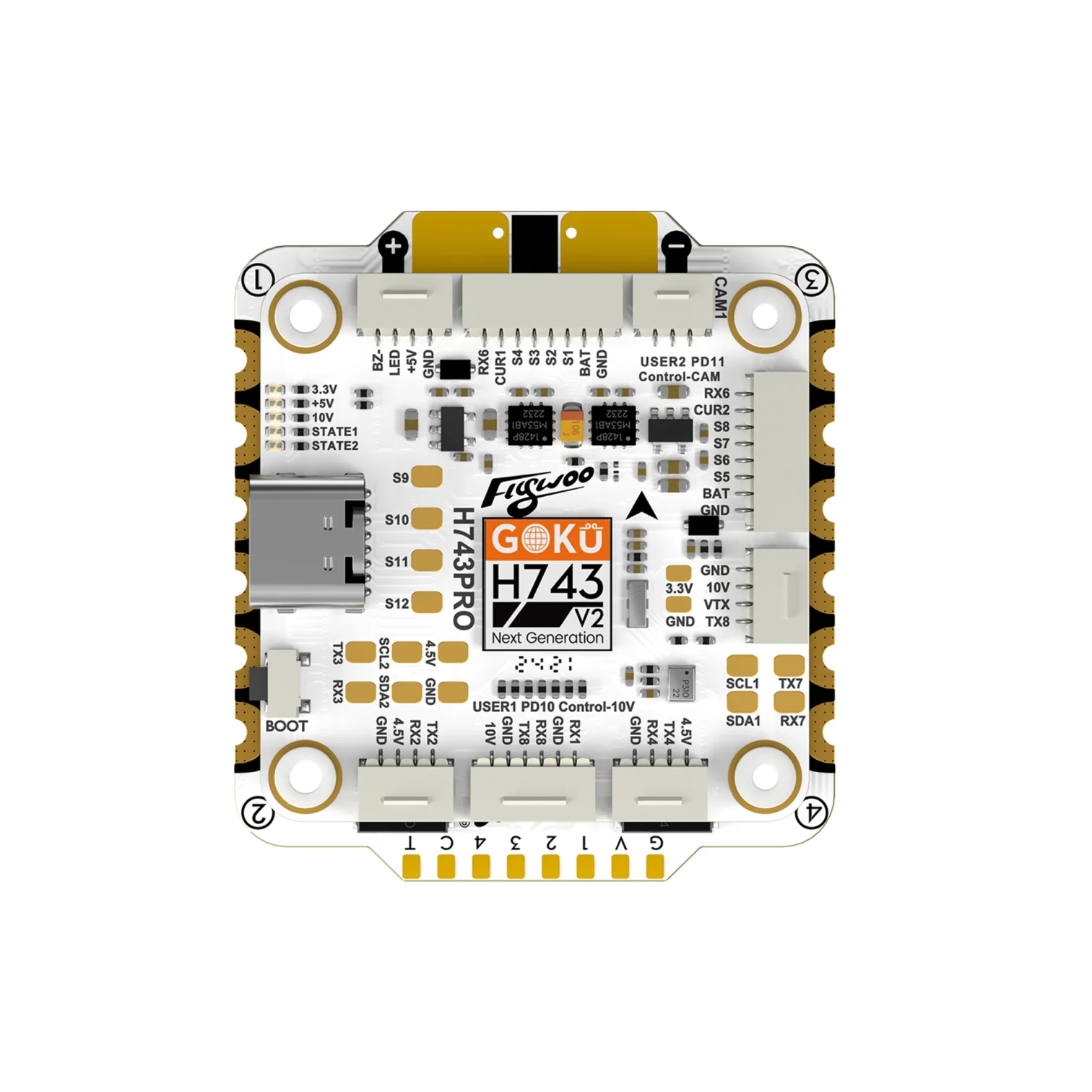

GOKU H743 PRO Flight Controller
- BetaFlight Firmware: Flywoo H743PRO
- INAV Firmware: Flywoo H743PRO
- APM Firmware:Flywoo H743PRO
- Flash: 2MB
- MCU: STM32H743VIH6
- Gyroscope: ICM42688P*2
- OSD: AT7456E(LGA16)
- Barometer: DPS310/SPL06
- Black Box: 512MB
- UARTS: 1/2/3/4/6/7/8
- I2C:2
- PWM:12
- Input Voltage: 7.4V-26V/2-6S LiPo/Lihv
- BEC: 10V3A/5V3A
- Camera support：CAM1,CAM2
- Flight Controller Size: 36.5mm x 36.5mm x 8.45mm（Height including plug）
- Mounting Holes: M3 30x30mm
- Weight: 9.9g
- Support AM32
- Support Dshot300, Dshot600
- PWM frequency: 24k-128k
- Input Voltage: 3-6S Lipo
- Continuous Current: 55A
- Firmware:
AM32：AT32DEVF421 - Weight: 15g
In the Box
- 1 x FC&ESC Connection Cable
- 1 x DJI O4/O4P Connection Cable
- 1 x Buzzer Connection Cable
- 1 x Receiver Connection Cable
- 1 x GPS Connection Cable
- 2 x Camera Connection Cable
- 1 x Analog VTX Connection cable
- 1 x XT60 Power Cable
- 9 x M3 Shock-Absorbing Ball
- 5 x M3 Rubber Ring
- 1 x Capacitors
- 5 x Nylon studs
- 5 x Anti-Slip Nuts
